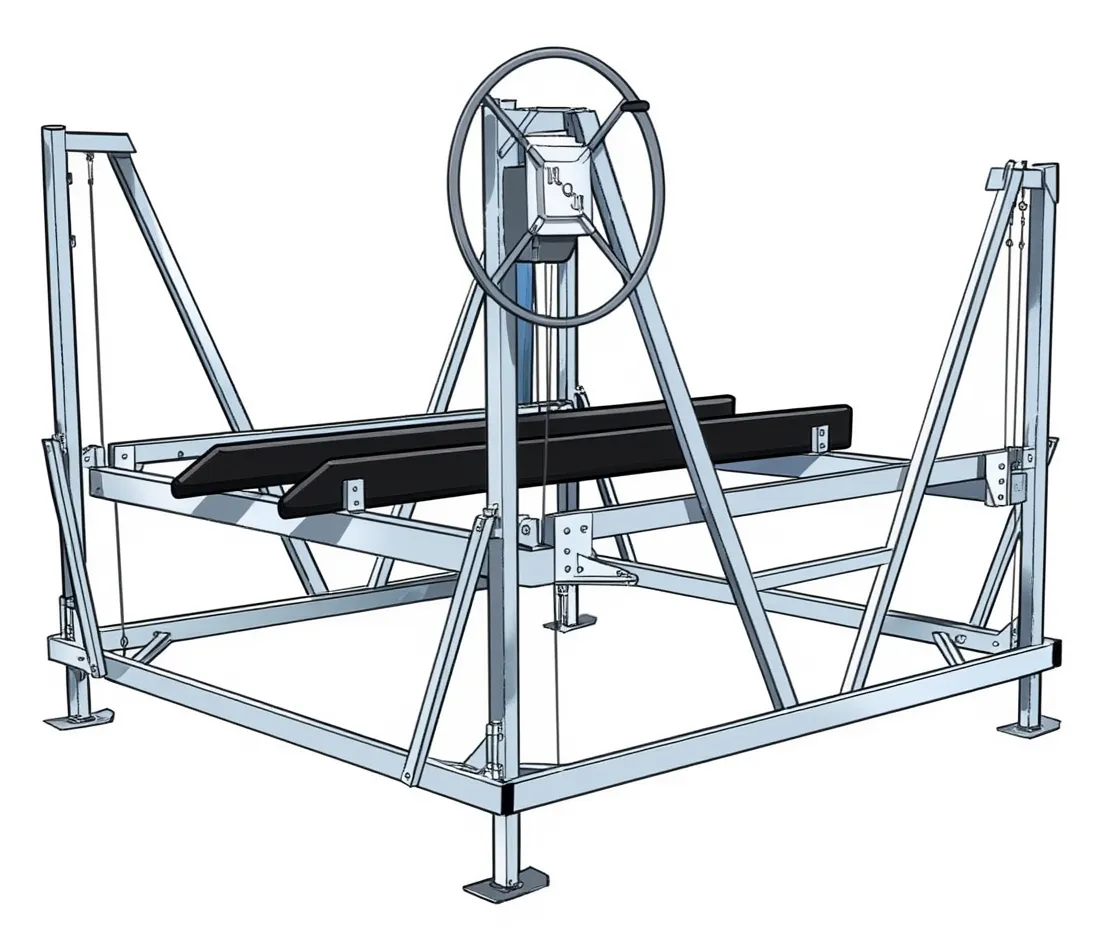

Vertical Boat Lifts: The Gold Standard for Protection
When it comes to protecting your boat in rough water, a Vertical Lift is the most effective solution available. Operating like a high-precision elevator, these lifts raise your boat straight up, keeping its center of gravity directly over the structural frame at all times. This design provides superior stability compared to cantilever styles and allows for the highest clearance above cresting waves and heavy wakes.
Engineered for Performance
Our lifts are designed to make your boat faster and easier to use while ensuring it stays safe and dry when not in use.
- Maximum Travel: With up to 64″ of lift travel, these units provide the elevation needed to keep your boat clear of debris and rough water.
- Low Water Capability: Despite their heavy-duty nature, our 2,500 lb to 4,500 lb models require only 8″ of water plus your boat’s draft to operate.
- Bolt-Together Versatility: Our unique bolt-together design allows for assembly in hard-to-reach island locations or down narrow cottage paths where fully welded frames simply cannot go.
- Safety First: Every model is load-tested to handle 130% – 200% of its rated capacity for total peace of mind.
Technical Specifications
| Capacity | Inside Width | Lift Travel | Water Depth Required |
|---|---|---|---|
| 2,500 lbs | 108″ | 55″ | 8″ + Draft |
| 3,500 lbs | 120″ | 64″ | 8″ + Draft |
| 4,500 lbs | 120″ | 64″ | 8″ + Draft |
| 6,000 lbs | 120″ | 60″ | 10″ + Draft |
| 8,000 lbs | 120″ | 60″ | 10″ + Draft |
Narrower sizes are available on some models by request.
Essential Accessories & Upgrades
Tailor your lift to your specific boat and docking style with our most popular add-ons:
1. High Top Canopies
For the best protection against rain, sun, and birds, a High Top Canopy is a must-have upgrade.
- Superior Coverage: Covers 41″ from the top of the arch to the bottom of the skirt.
- Adjustable Fit: The frame adjusts 18″ in height to accommodate different boat styles.
- Color Options: Available in Blue, Green, Tan, or Grey to match your dock aesthetic.
2. Remote Controlled Power Winches
Eliminate the effort of manual cranking. We offer 110V AC or 12/24V DC motors that allow you to raise or lower your boat with a remote or even a smartphone app.
- AutoStop Technology: Available on premium models to automatically stop the lift at your preferred height.
- Solar Kits: For off-grid docks, our solar charging kits keep your DC motors powered all season long.

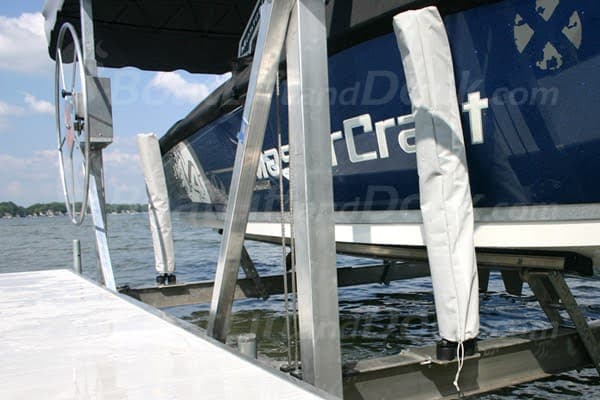

3. Foam Guides
Protect your gel coat during docking with Foam Guides. These uprights feature protective canvas covers and provide a visual target, making it easy to center your boat even in wind or cross-currents.
4. Seasonal Management: Wheel Kits
Moving a 500 lb+ aluminum lift shouldn’t be a chore. Our Boat Lift Wheel Kits allow you to easily roll your lift out of the water for the winter to avoid ice damage. For even easier handling, the Hoist Lifter winch makes attaching wheels a simple, one-person job.
The On The Water Promise
We stand behind our craftsmanship with an industry-leading 15-year warranty, including 2 years of coverage on the stainless steel cables. Whether you are protecting a classic V-hull or a modern Tri-toon, we have the specialized saddle kits and expertise to ensure your boat stays safe, dry, and ready for the next weekend.
Frequently Asked Questions
A vertical boat lift raises the boat straight up using cables connected to a winch system. The lifting motion keeps the boat level while the frame supports the vessel from underneath.
Vertical lifts move boats straight upward instead of tilting or pivoting them. This keeps the weight centered over the frame, improving stability and balance during the lifting process.
Vertical boat lifts are commonly installed on permanent docks, pipe docks, or stationary dock systems where the frame can remain stable while lifting and storing the boat.
Yes. Lifting the boat completely out of the water helps reduce hull buildup, algae growth, and prolonged water exposure that can affect performance and maintenance needs.
Yes. Many boat owners use vertical lifts throughout the boating season to keep their boats raised between uses, reducing wear and improving long-term protection.
